<div data-block="true" data-editor="bpses" data-offset-key="141hi-0-0" id="isPasted"><div data-offset-key="141hi-0-0"><span data-offset-key="141hi-0-0"><span data-text="true">Thanks for reaching out and for your interest in our Top Shelf Handlebar!</span></span></div></div><div data-block="true" data-editor="bpses" data-offset-key="apov1-0-0"><div data-offset-key="apov1-0-0"><span data-offset-key="apov1-0-0"><br data-text="true"></span></div></div><div data-block="true" data-editor="bpses" data-offset-key="8c9fc-0-0"><div data-offset-key="8c9fc-0-0"><span data-offset-key="8c9fc-0-0"><span data-text="true">The distance from weld to weld on the Top Shelf Bar is 125mm on the 50mm rise and 143mm on the 70mm rise bar, regardless of bar width.&#xA0;</span></span></div></div><div data-block="true" data-editor="bpses" data-offset-key="39lcg-0-0"><div data-offset-key="39lcg-0-0"><span data-offset-key="39lcg-0-0"><br data-text="true"></span></div></div><div data-block="true" data-editor="bpses" data-offset-key="2ehh-0-0"><div data-offset-key="2ehh-0-0"><span data-offset-key="2ehh-0-0"><span data-text="true">Please note that the diameter of the top bar between these welds is 25.4mm so you may need a shim for any accessories that mount with a standard 31.8mm Clamp.&#xA0;</span></span><a href="https://redshiftsports.com/products/shockstop-stem-handlebar-shim" target="_blank" rel="noopener noreferrer" style=" text-decoration: none !important;"><span data-offset-key="2ehh-1-0"><span data-text="true">We do offer 25.4mm shims here!</span></span></a></div></div><div data-block="true" data-editor="bpses" data-offset-key="4loma-0-0"><div data-offset-key="4loma-0-0"><span data-offset-key="4loma-0-0"><br data-text="true"></span></div></div><div data-block="true" data-editor="bpses" data-offset-key="bkavr-0-0"><div data-offset-key="bkavr-0-0"><span data-offset-key="bkavr-0-0"><span data-text="true">Further detailed dimensions can be seen here:<img src="https://attachments.gorgias.help/z8QbV2PGMQp6ogeP/hc/Q9r0k7BmMYG2vg13/2025100119-7b6138e4-e59c-4397-95dc-cbcc573fc4ad-tshb%2025%20deg%20-%20tech%20drawing.jpg" style="width: 692px;" class="fr-fic fr-dib"></span></span></div></div>

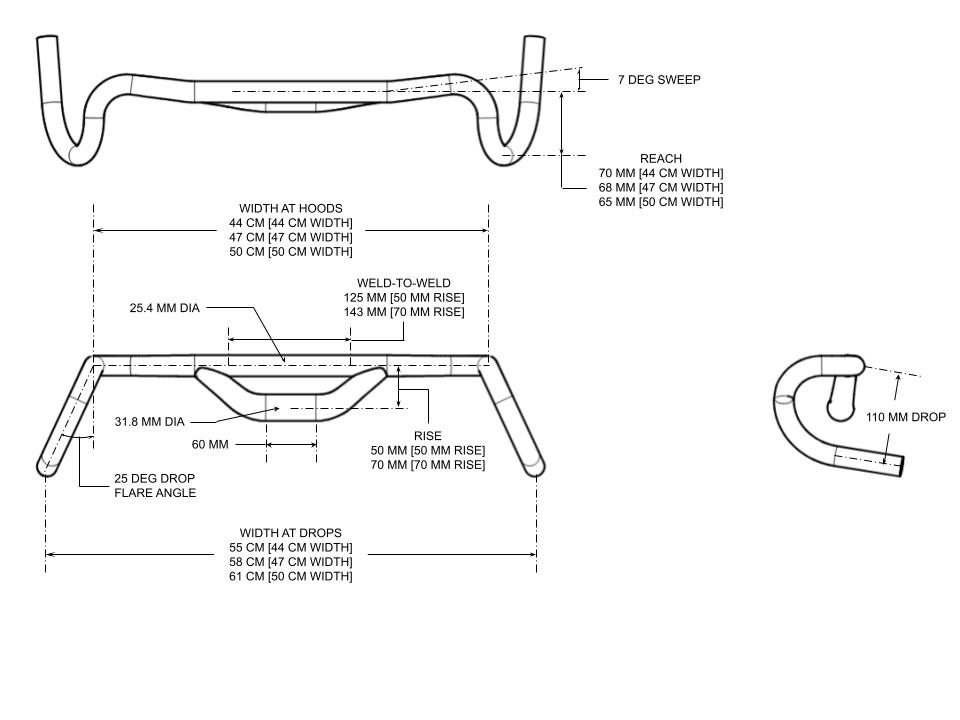

Thanks for reaching out and for your interest in our Top Shelf Handlebar!The distance from weld to weld on the Top Shelf Bar is 125mm on the 50mm rise and 143mm on the 70mm rise bar, regardless of bar width. Please note that the diameter of the top b

What are the detailed dimensions of the Top Shelf Handlebar?
